From Prototype to Volume With a 0.78-Inch OLED in Test Equipment
Moving a test instrument from a handful of lab prototypes to a real production run exposes every assumption about the display. A 0.78-inch monochrome OLED with a 128x80 resolution and an SPI interface is a mature, low-power building block that scales well, but scaling is about process and documentation as much as about the panel. The work is to lock the revision, define the appearance window, build a per-unit test and keep the firmware portable, so that unit ten thousand looks and behaves like unit one.

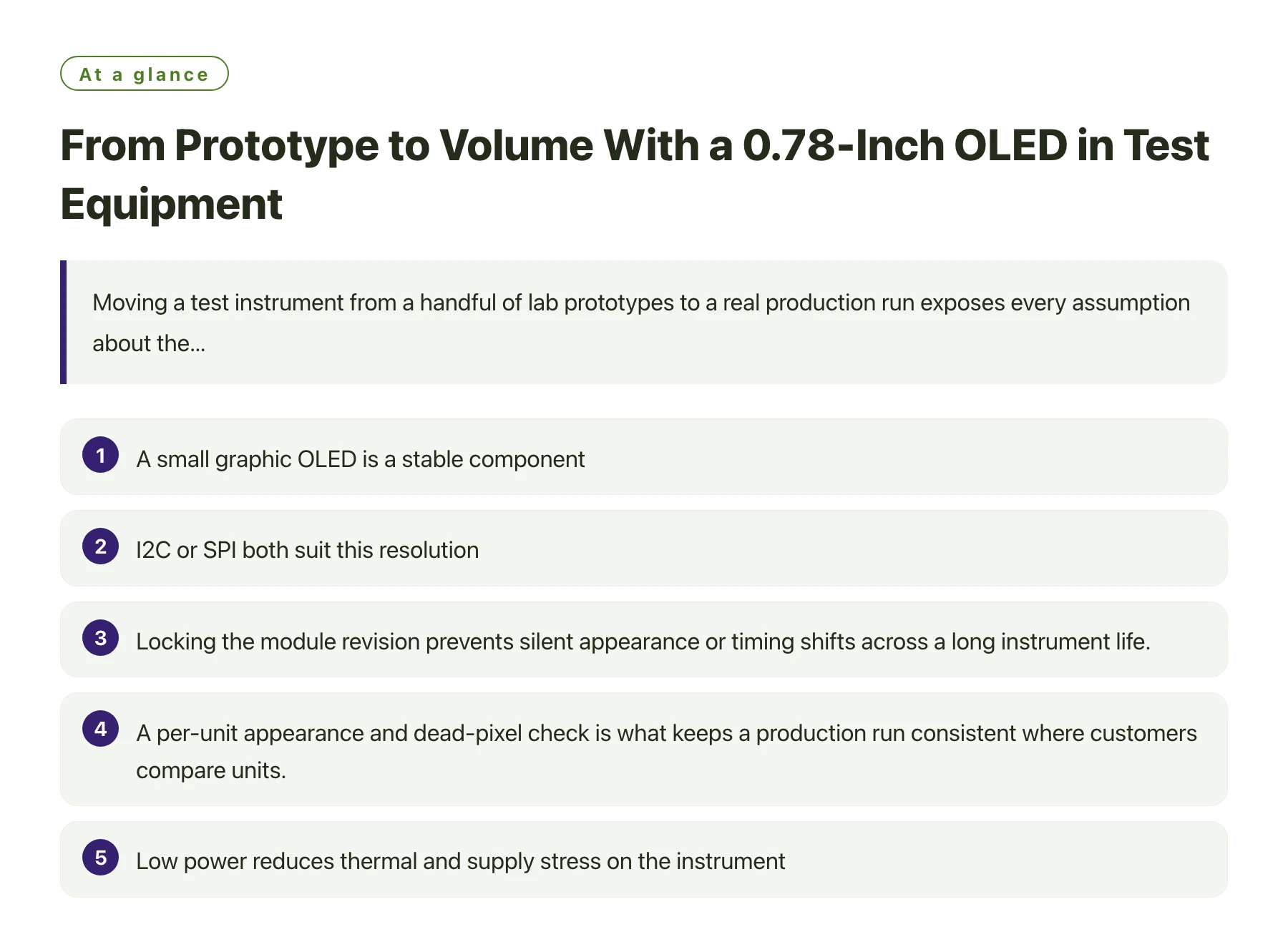

Key takeawaysA small graphic OLED is a stable component, so the scaling risk is in process and documentation, not the panel itself [1]. · I2C or SPI both suit this resolution, and keeping the firmware portable protects the design if the bus choice changes later [2]. · Locking the module revision prevents silent appearance or timing shifts across a long instrument life. · A per-unit appearance and dead-pixel check is what keeps a production run consistent where customers compare units. · Low power reduces thermal and supply stress on the instrument, which supports field reliability at volume.
The gap between a prototype and volume in test equipment is mostly about repeatability. The first unit works because an engineer fussed over it; the ten-thousandth unit works only because the process and the documentation force the same result without that fuss.
A 0.78-inch OLED is a good substrate for that discipline. It is a small, mature, low-power graphic device with a simple interface, so the engineering risk is low and the scaling risk is concentrated in the boring parts: revision control, appearance limits and test coverage.
This article maps the path from prototype to volume for this part, with an emphasis on the controls that prevent the slow drift that turns a clean instrument into an inconsistent one.
Lock the revision before you scale
The single most protective action is to qualify the design against a specific module revision and to keep buying that revision. Small OLEDs can shift tint or init behaviour between batches even when the part number is unchanged, and at volume those shifts become visible.
A locked revision turns a vague complaint into a checkable spec: the service unit either matches the baseline or it does not. Without that lock, every batch is a small gamble that accumulates into field inconsistency.
Documenting the revision also protects firmware portability, because the init sequence and timing are tied to the specific panel and driver the design was built against.
Prototype-to-volume checklist
| Control | Why it scales | What breaks without it |
|---|---|---|
| Revision lock | Keeps units identical | Silent tint or timing drift |
| Appearance window | Consistent look | Visible unit-to-unit defect |
| Per-unit test | Screens every panel | Escaped dead pixels |
| Portable firmware | Survives bus change | Fragile, single-vendor code |
| Supply plan | Supports the run | Abrupt stop at volume |
Keep the firmware portable
At this resolution both SPI and I2C are adequate, and writing the display driver against a thin interface layer means a future bus or controller change does not ripple through the instrument firmware. That portability is a scale-protection measure as much as a convenience.
It also supports second-sourcing. If the DisplayModule 0.78" OLED display remains the primary part, a portable driver makes a qualified alternative far less painful to adopt if supply ever tightens.
Combined with the revision lock and the per-unit test, portability is what lets a small instrument programme grow from lab to line without re-deriving the display software each time.
The per-unit test does not have to be elaborate to be effective; it has to be consistent and automatic. A short routine that draws a known pattern, checks for dead or stuck pixels and confirms the init sequence completes within tolerance catches the failures that customers would otherwise find. Because the panel is cheap, the cost of scrapping a bad unit at test is far lower than the cost of a return from a lab, and the test jig pays for itself quickly in a real run. Equally important, the test produces a record: when a batch drifts in tint or alignment, the logged results show it before the units ship, rather than after a customer compares two machines on a shelf. That feedback loop is what turns a one-off good design into a repeatable production process, and it is the step most often skipped under schedule pressure even though it is the cheapest insurance against field inconsistency.
Finally, treat the supply plan as a design input, not a purchasing afterthought. A long-lived instrument programme should know the continuity story for the panel and its controller before committing the layout, while the design can still accommodate an alternative. Discovering a constraint after volume has started forces either a costly requalification or a silent substitution that risks the very inconsistency the revision lock was meant to prevent.
At volume, the display's scaling risk is process and documentation, not the panel. Lock the revision, define the appearance window and test every unit.
Sources
Frequently asked questions
Why is revision control so emphasised?
Small OLEDs can shift tint or init behaviour between batches under the same part number. Locking the revision keeps every unit, including service units, faithful to the qualified design.
Is SPI or I2C better for scaling?
Both suit 128x80. The point is to keep the firmware portable so a bus or controller change later does not force a rewrite, which protects the run.
What test should every unit get?
A quick appearance and dead-pixel screen plus an init-sequence check. It is simple but it is what stops inconsistent or defective panels reaching customers who compare units.
Does low power help at volume?
Yes, indirectly. Less display power means less thermal and supply stress on the instrument, which supports field reliability across a long production life.
